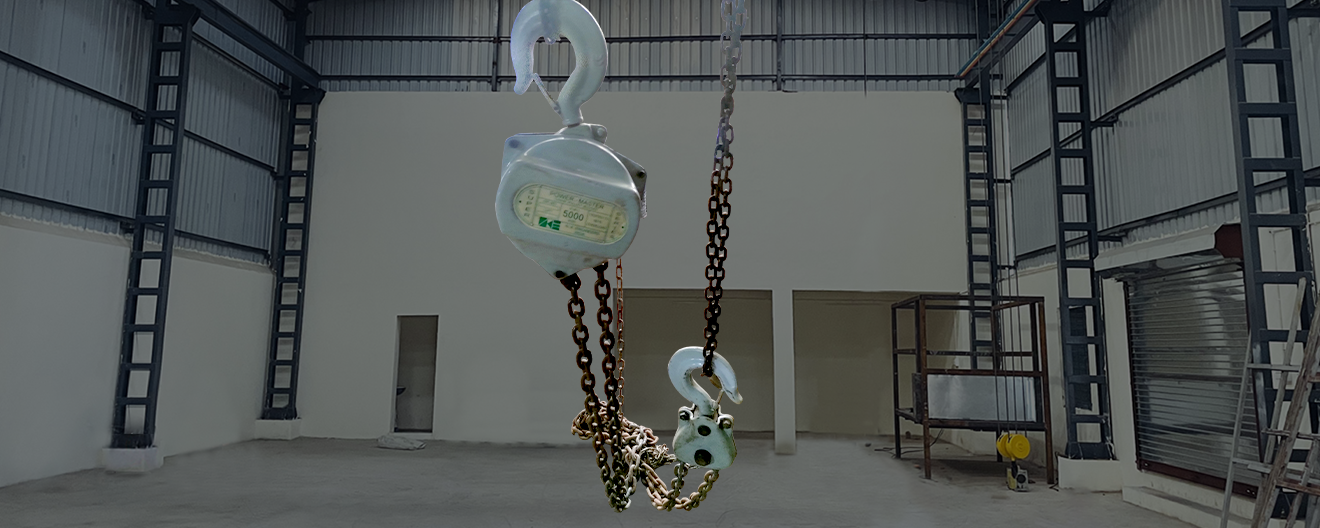

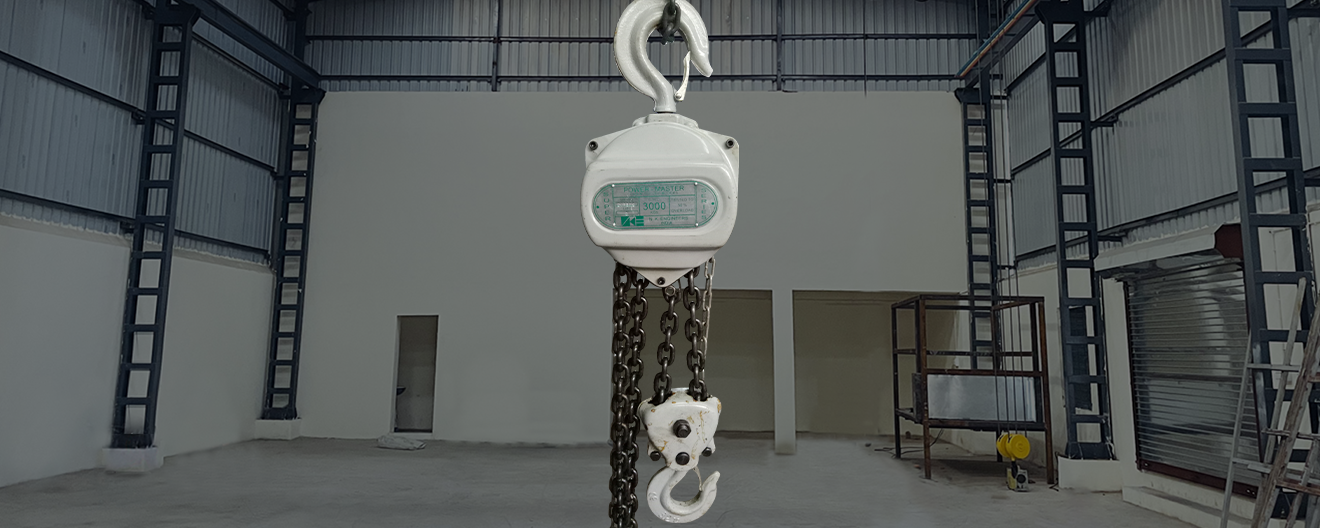

Chain Pulley Blocks

Catalogue Get Quote

Our Chain Pulley Blocks are designed perfectly to meet the modern material‐handling requirements. Design of our chain pulley block conform to IS: 3832-2005 with compliance to all the technical and safety parameters which guide the same. Load chain made of Alloy Steel Grade 80 is used in Chain Pulley Blocks.

Features
  • Minimum effort to lift the load
  • Even loading of bearings
  • Ease of Installation & Maintenance
  • Compact design
  • Self-braking system for holding the load in any position
Load Chain

Alloy steel chain Gr-80 as per IS: 6216 uniformly electrically resistance welded duly heat treated for ductility, toughness and wear resistance. Chains are accurately calibrated for smooth running in chain sprocket.

Hooks

Forged hooks as per IS: 8610/ IS : 15560 and fitted in upper-arm and bottom block made out of heavy duty malleable casting/S.G. Iron.

Ball - Bearings

Chain Pulley Block will have two ball / roller bearings for smoother running on load.

Load Chain Wheels

Load Chain Wheels are Made up of Malleable/S.G. Iron casting with accurate chain sprockets for smooth running of chain.

Gears

Gear blanks are made out of nickle-crome alloy steel. Accurately machined and teeth generated on hobbing machines for involute corrected for high bending stress and low wear. All gears are hardened and tempered for minimum wear.

Hand Chain Wheel

Accurately sprocket chain wheel made out of graded casting as per IS: 210 shall be provided.

Brake

Self actuating type load pressure brake of screw & friction washer type ensures safety at all the position.

Specification (Heavy duty)
Capacity in Tonnes Tested Load in Tonnes Standard Lift in Mtr. Dia of Load Chain in MM Numbers of Load Chain Effort of full Load Kgs. Chain ratio Hand Chain to Load (MM) Net Wt. with 3 Mtr.Lift Kgs. Extra Wt.per additional Mtr.Lift
Capacity in Tonnes Tested Load in Tonnes Standard Lift in Mtr. Dia of Load Chain in MM Numbers of Load Chain Effort of full Load Kgs. Chain ratio Hand Chain to Load (MM) Net Wt. with 3 Mtr.Lift Kgs. Extra Wt.per additional Mtr.Lift
1.0 1.5 3.0 8 1 26 52 22 3
2.0 3.0 3.0 8 2 28 104 35 4.4
3.0 4.5 3.0 8/9 2 30 144 58 4.8
5.0 7.5 3.0 9/10 2 49 144 75 5.6
7.5 11.25 3.0 10/12 3 53 216 120 10.6
10.0 15.0 3.0 10/12 4 57 288 160 13.6
Specification (Super Series)
Model SS 1TON SS 2TON SS 3TON SS 5TON SS 10TON
Model SS 1TON SS 2TON SS 3TON SS 5TON SS 10TON
Capacity In Ton 1 2 3 5 10
Standard in ton 3.0 3.0 3.0 3.0 3.0
Tested Capacity In Ton 1.5 3.0 4.5 7.5 15
Head Room in mm 400 420 620 704 720
Effort req. to lift max. load in 304 314 343 382 192
Load chain size in mm 6 6 8 10 10
Dimension A 164 164 198 228 367
B 124 124 142 167 167
C 27 30 37 46 54
D 182 182 219 252 252
Net Weight in kg (Approx) 9.5 11.5 21 33 69
Extra Lift / Mtr Weight in kg 1.65 2.45 3.3 5 10
