Monorail Trolley

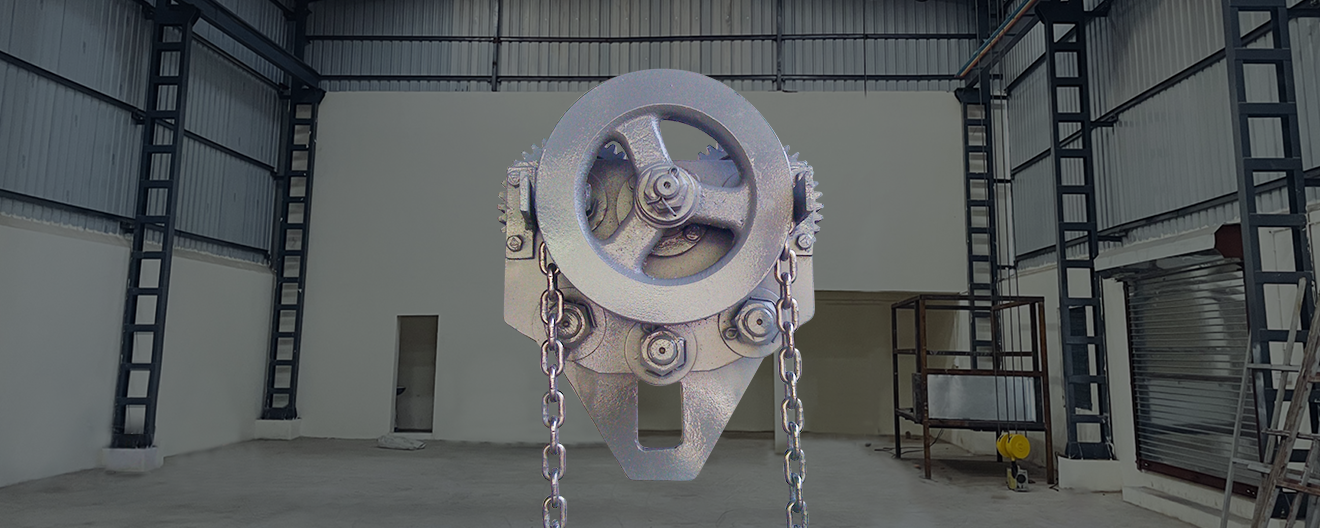

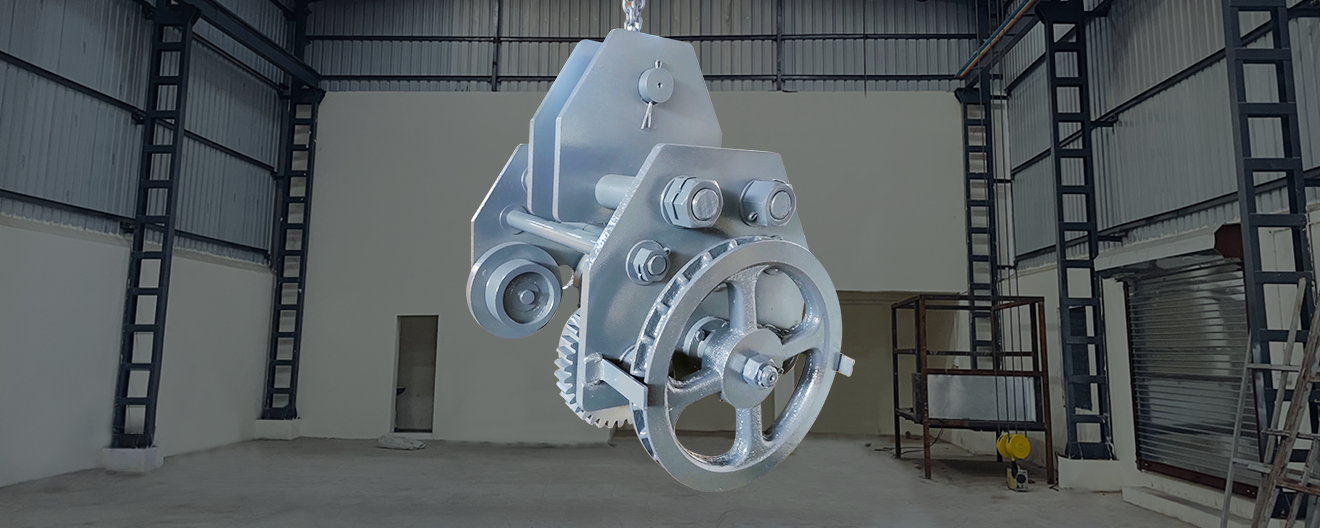

Power Master Monorail Travelling Trolley (Geared Type) Moreover exceptional performance in material handling operations. Engineered for smooth and efficient movement along monorail tracks, Ideal for high-performance environments and heavy-duty applications. Its robust construction ensures durability and reliability, even in demanding environments. The geared mechanism facilitates precise control, enhancing operational efficiency and safety.

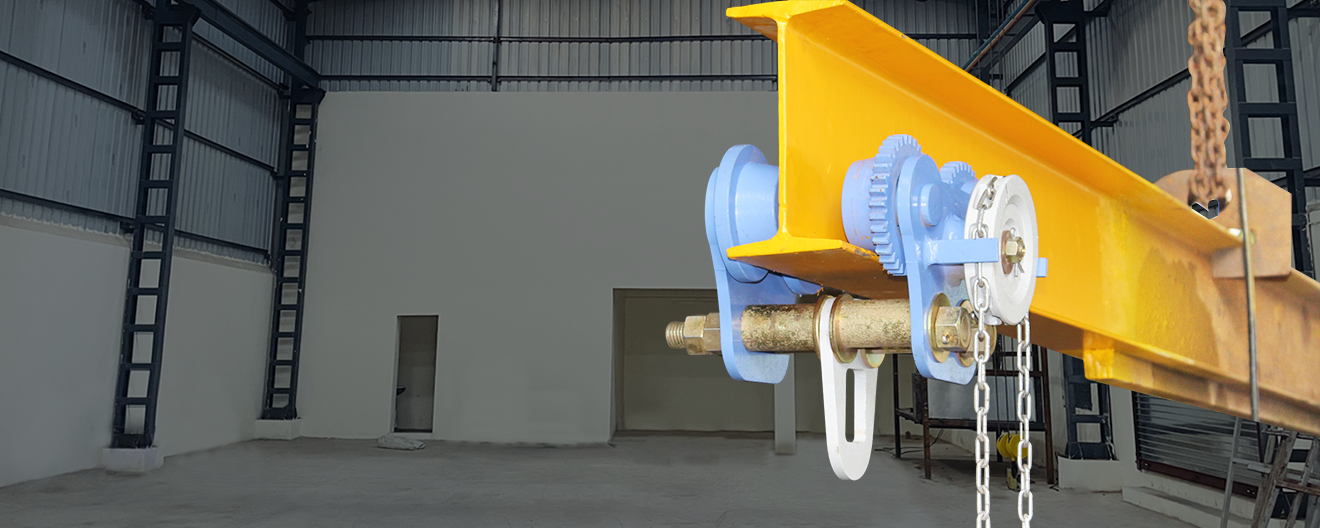

Our Monorail Travelling Trolley (Push Pull Type) is Designed for easy manual operation, Given that smooth movement along monorail tracks with minimal effort. Its straightforward design simplifies the handling of materials in various industrial settings. Furthermore, this trolley is particularly useful in environments where manual control and flexibility are essential for operational efficiency.

Standard Features
  • An ISO 9001-2008 Company
  • Light Weight & Sturdy
  • Easy Of Handling
  • Smooth Hand chain Operation
  • Tested As Per ISI Procedure
  • Anti Corrosive Poweder coated Finish, zink Plated Load Bars, Washer & Locking Nuts
  • Shafts & axles are accuarately machine cut from carbon steel & properly supported
  • Excellent travel abolity due to Ball bearing in wheels
Specification
Model Capacity (TONNES)  A B C D.   M (Min)   M (Mix) N H Net WT with 3mtr Lift KGS Extra WT per Additional mtr Lift
SS 1C 1 138 210 125 125 75 100 150 255 12 0.7
SS 2C 2 136 240 125 130 75 150 150 265 14 0.7
SS 3C 3 162 265 150 140 100 180 200 290 24 0.7
SS 5C 5 205 310 150 175 125 180 250 340 34 0.7
